Chevy 5.3 Firing Order | Meaning, Importance, Diagram and Torque Specification

Among the LS engines from 1999-2007, the 5.3 is the most renowned and reliable.

5.3 is a small block series of GEN-III, and its firing order is very significant.

5.3 engine is used in Chevy Silverado, Express, Avalanche, and Tahoe.

It can be confusing for some users to understand the firing order of the 5.3L engine due to its multiple numbers.

I have discussed the Chevy 5.3 firing order, its differences, the diagram, how to determine it, and its torque specification in this article.

What Do You Mean by Firing Order on a Chevy 5.3?

An internal combustion chamber’s firing order on a Chevy 5.3 refers to the order in which the eight cylinders ignite and fire.

Various engines have different firing orders because the firing order affects engine performance.

A firing order is a set of numbers that indicate which power stroke ignites first and second and maintains the periodic number.

The number of firing order series may differ depending on engine design.

Diagram and Torque Specification of Chevy 5.3 Firing Order

1-8-7-2-6-5-4-3 is the firing order of the Chevy 5.3 engine.

This number of series indicates Chevy 5.3 spark plugs will fire first at number 1, then number 8, then number 7, and the next 5 spark plugs sequentially.

It is a clockwise heading.

Engine from front to back, the odd-numbered (1,3,5,7) cylinders are located on the driver’s side, while the even-numbered (2,42,6,8) cylinders are situated on the passenger’s side.

The firing order series of the 5.3 engine is quite different from other big block or small block seasoned engines.

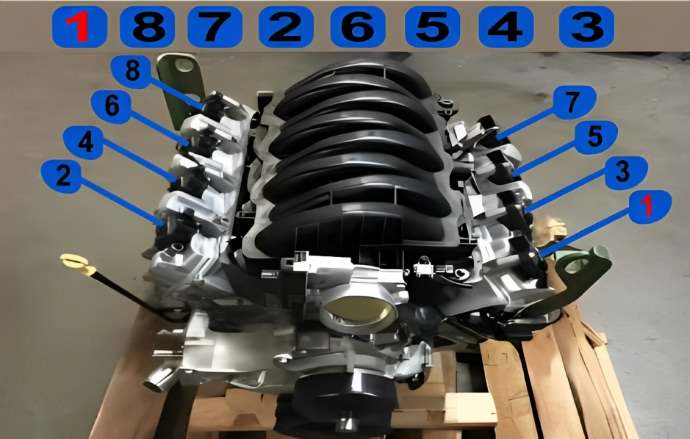

Diagram of the Chevy 5.3 Firing Order

Diagram of the Chevy 5.3 Firing Order

Firing Order of 5.3 Chevy and Torque Specification

The firing order of Chevy 5.3L and torque specification is listed below:

Type of Fastener Torque Specification
Main Cap Bolt (4-Bolt) 110 pound-feet of torque
Main Cap Bolt (2-Bolt) 95 pound-feet of torque
Cylinder Head Bolts, Long 74 pound-feet of torque
Cylinder Head Bolts, Short 66 pound-feet of torque
Connecting Rod Bolt (3/8 inch) 50 pound-feet of torque
Connecting Rod Bolt (7/16 inch) 72 pound-feet of torque
Screw in Rocker Arm Stud 50 pound-feet of torque
Oil Pump Bolt 65 pound-feet of torque
Intake Manifold 26 pound-feet of torque
Flexplate Bolts 60 pound-feet of torque
Cam sprocket Bolt 20 pound-feet of torque
Exhaust Manifold Bolts 20 pound-feet of torque
Pressure Plate Bolts 35 pound-feet of torque
Bellhousing Bolts 25 pound-feet of torque

What Engines are Compatible with the 5.3 Firing Order?

These engines are fired according to the 5.3 firing order:

  • 502 Chevy
  • 454 Chevy
  • 402 Chevy
  • 396 Chevy
  • 366 Chevy

Importance of Firing Order in a Chevy 5.3L Engine

The manufacturer uses different firing orders based on engine design to make the engine more effective.

The following 04 factors indicate how significant the firing order is.

01. Ensures Engine’s Smooth Operation

During ignition, the crankshaft is rotated by the pistons in each cylinder.

It is crucial to move all pistons appropriately to move the crankshaft in the same direction.

So, the manufacturer adopted a particular firing order for engines to reduce stress on moving parts and the crankshaft.

A proper firing order helps the engine to operate smoothly by reducing vibrations, unwanted noises, wear and tear and decreasing damage to other moving parts.

That’s why the 5.3 engine smoothly serves more than 250000 miles without any major issues.

Performance is improved with a smoother engine.

Proper firing order also improves an engine’s power output.

02. Improves Fuel Economy

A precise firing order helps the engine burn the fuel completely.

Fuel economy is positively affected if the engine has no backfires, misfires, or premature ignition problems.

So, the engine’s fuel economy will increase if the firing order is accurate.

03. Prevents Misfire

If the firing order is wrong or improper, it causes the engine to misfire.

As a result, a great deal of unburned fuel passes through the exhaust system.

When the engine misfires, you experience popping sounds, reduced engine power, vibration, etc.

Sometimes, the engine won’t start.

A firing order is imperative to prevent such problems.

04. Improves Emission Control

If the firing order is correct, the spark plugs will fire in the proper order.

As a result, each cylinder’s exhaust gases enter the exhaust manifold and flow out properly.

An appropriate firing order prevents backpressure, which prevents exhaust manifold backfiring and improves emission controls.

You can watch this video to understand the firing order:

How Do You Find the Firing Order of the 5.3 Chevy Engine?

Generally, an engine is divided into two basic types depending on the firing order.

The first is where the number-1 cylinder fires first, and the second is where the number-1 cylinder fires last.

So, the number of cylinders in an engine is also vital to determine the firing order.

The easiest way to find the firing order for 5.3 Chevy is from your vehicle owner’s manual.

You can also consult an expert mechanic to direct you to determine the correct firing order.

What is Chevy Silverado 5.3 5.3 Vortec firing order?

The Chevy Silverado 5.3 Vortec firing order series is 1-8-7-2-6-5-4-3.

In this firing order, the spark plugs fire first in cylinder 1, then in cylinder 8, and then sequentially in other cylinders.

It is a clockwise firing order.

The driver-side firing order sequence is 1,3,5,7, while the other-side firing order sequence is 2,4,6,8.

Silverado 5.3 Vortec’s firing order differs from other big block or small block parts.

Typically, most engines have four or six cylinders, but the 5.3 has eight.

The 5.3 Vortec engine’s additional cylinders are fired first and placed at the front.

The 5.3 firing order is essential to reduce vibration and ensure smooth engine operation.

FAQs

What is 2008 Chevy Impala 3.5 firing order?

In the 2008 Chevy Impala 3.5, the firing order is 1-2-3-4-5-6.

It is a 6-cylinder engine in which the number 1 spark plug fires first, and sequentially the number 6 spark plug fires last.

What is the firing order on a 5.3 Chevy engine?

The Chevrolet 5.3L engine firing order is 1-8-7-2-6-5-4-3.

This order is divided into 02 lines.

The first line is the odd number line (1-3-5-7), and the second line is an even number line (2-4-6-8).

Is the firing order the same for all V8 engines?

No, the firing order of V8 engines differs.

Despite having the same manufacturer, V8 engines use different firing orders to balance engine power.

As a mechanic, I think the most effective firing order is AMC 1-8-4-3-6-5-7-2, which is clockwise.

The firing order for Hemi and Chrysler is 1-8-4-3-6-5-7-2, which is anti-clockwise.

The firing order for Ford V8 is 1-5-4-2-6-3-7-8, which is also anti-clockwise.

How do you determine firing order on a Chevy?

The proper way to determine the firing order on a Chevy is in the owner’s manual.

In most Chevy vehicles, the firing order is usually 1-8-4-3-6-5-7-2, which is a clockwise firing order.

GM LS firing order is 1-8-7-2-6-5-4-3.

Can we change the firing order?

No, the firing order cannot be changed due to engine design.

If you customize your engine to change the firing order, you may face misfire problems and reduced engine issues.

Final Thoughts

I hope now you have a better understanding of the firing order of a Chevy 5.3 and how it works.

Engine maintenance and troubleshooting problems become easier with a better understanding of firing orders.

Always take your vehicle for routine maintenance and use synthetic fuel to keep your engine healthy.
